Silicone Pull Plug – Pull Plugs

Silicone Pull Plugs: Product Overview, Structure, Applications and Selection Guide

Silicone pull plugs are flexible rubber components designed to cover and seal through-holes in various parts, equipment and assemblies. Unlike conventional plugs that are normally pushed directly into a hole, pull plugs feature an extended pull stem that can be inserted through the opening and pulled from the opposite side.

This design makes pull plugs convenient for applications where the hole is small, deep or difficult to access from one side. Made from flexible silicone rubber, silicone pull plugs can provide a practical solution for temporary hole protection, masking, sealing and component protection.

What Are Silicone Pull Plugs?

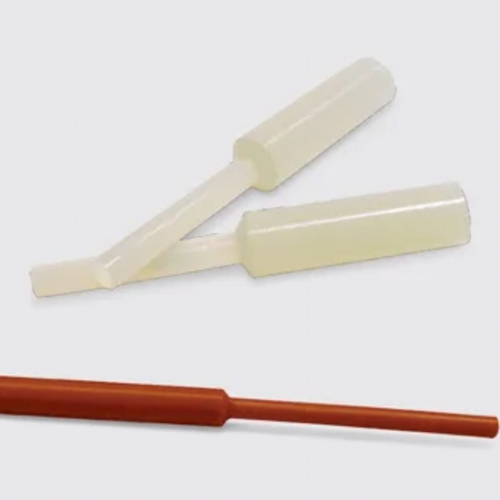

Silicone pull plugs are small silicone rubber plugs consisting of a main plug body and an extended pull stem. The stem is inserted through the hole first, allowing the user to pull the main body into position.

When properly sized, the flexible silicone body is compressed against the hole and held in place. This provides a simple and convenient way to cover or protect openings during manufacturing, finishing, assembly, storage and other industrial processes.

What Does Pull Plugs Mean?

Pull plugs is a general term describing plugs that are installed by pulling a stem, tab or extension through a hole. The term describes the installation method rather than one specific shape or application.

Depending on the design, pull plugs may be manufactured from silicone rubber, EPDM, NBR or other elastomeric materials. Silicone is often selected when flexibility, temperature resistance and long-term material stability are important.

What Is a Cord Stopper?

The term cord stopper can refer to different types of components depending on the application. In some cases, it describes a small stopper or plug used to hold, position or limit the movement of a cord, wire or flexible element.

A silicone cord stopper is a cord stopper manufactured from flexible silicone rubber. Silicone cord stoppers can be designed in different shapes and sizes according to the cord, opening and required holding function.

It is important to distinguish between a pull plug and a cord stopper. A pull plug is primarily designed to cover or seal a hole, while a cord stopper may be designed specifically to control, hold or position a cord.

Difference Between Common Plug Types

Structure, Shape and Installation Method

Structure and Shape

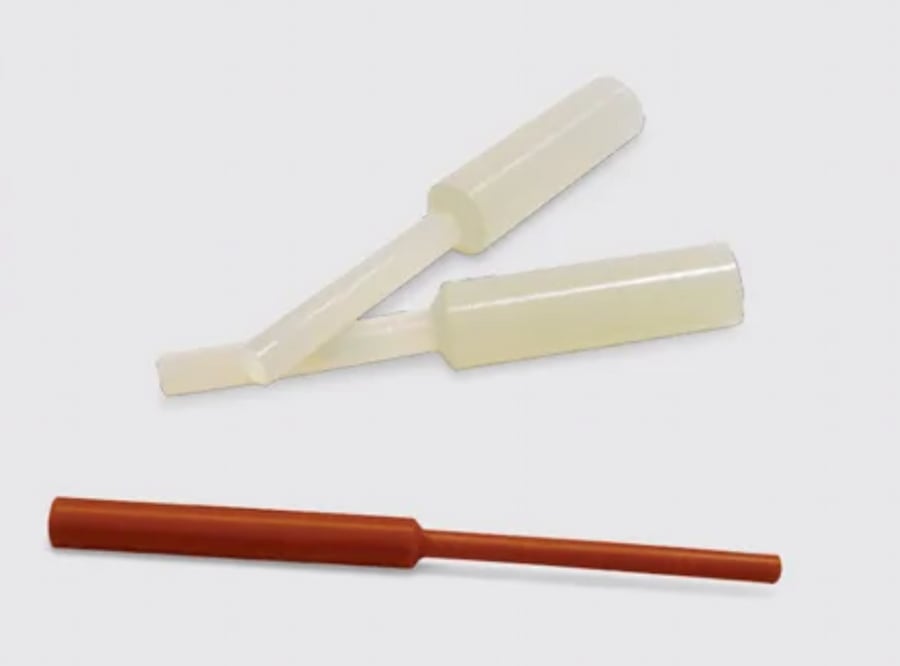

The typical silicone pull plug consists of a larger main body and a smaller pull stem. Depending on the design, the plug may have different body diameters, stem diameters and overall lengths.

The flexible structure allows the plug body to deform slightly during installation. Different sizes and shapes can be selected according to the diameter and thickness of the opening.

How Silicone Pull Plugs Work

1. Insert the pull stem through the opening from the accessible side.
2. Pull the stem until the main plug body moves into the hole.
3. Continue pulling until the flexible plug body is properly seated.
4. The compressed silicone body remains in position and covers the opening.

The holding force and sealing performance depend on several factors, including silicone elasticity, hole diameter, plug dimensions, plug geometry, material thickness and dimensional tolerances. Proper sizing is therefore important for reliable performance.

Applications of Silicone Pull Plugs

Common Applications

• Covering and protecting small holes in mechanical components and equipment.
• Protecting openings on electrical and electronic housings during manufacturing or surface finishing.
• Masking holes during painting, powder coating, plating and other finishing processes.
• Protecting openings during transportation, storage and assembly.
• Temporary sealing or covering of openings where easy installation and removal are required.
• Applications where a conventional push-in plug is difficult to install.

Silicone pull plugs can be particularly useful when the opening is small, deep or difficult to reach from the front side. However, the exact suitability should be verified through sample testing based on the actual application.

Pull Plugs and Silicone Cord Stoppers

Although pull plugs and silicone cord stoppers may look similar in some applications, they serve different purposes.

A pull plug normally focuses on covering or sealing an opening. Its pull stem provides a convenient way to install and remove the plug. A cord stopper, on the other hand, is generally designed to hold, limit or position a cord or flexible element.

For applications involving electrical wires or cables, a dedicated cable grommet or cable protection component may be more appropriate than a pull plug or cord stopper.

How to Choose the Right Silicone Pull Plug

• Hole diameter: Measure the opening carefully and select a plug size that provides suitable compression and retention.
• Material thickness: Consider the thickness of the panel or component where the plug will be installed.
• Plug diameter: Check the main body diameter (D) and smaller section diameter (d) against the application requirements.
• Pull stem length: The stem should be long enough to pass through the opening and allow convenient installation.
• Silicone flexibility: The elasticity of the material affects installation, retention and repeated use.
• Operating environment: Consider temperature, moisture, UV exposure, oils, chemicals and other environmental conditions.
• Application purpose: Determine whether the component is required for hole protection, temporary sealing, masking or cord positioning.
• Sample testing: For new applications, testing a sample before placing a large production order is recommended.

Reference Specifications for Silicone Pull Plugs

The table above presents reference specifications for SPP silicone pull plugs, including multiple diameter and length options for different hole-covering and protection requirements.

• Part Number: Identification code assigned to each specification.
• D: Outside diameter of the main plug body, measured in mm.
• d: Diameter of the smaller section or pull stem, measured in mm.
• L = l: Overall length of the pull plug, measured in mm.
• QTY: Quantity included in each package specification.

The listed SPP models have D dimensions ranging from 1.27 to 42.00 mm, d dimensions from 0.64 to 22.50 mm, and L dimensions from 12.70 to 50.80 mm. Packaging quantities range from 25 to 500 pieces depending on the model.

Custom sizes may also be considered when standard specifications do not match the actual application requirements.

Custom Silicone Pull Plugs Manufacturing at Giacongsilicone.com

Giacongsilicone.com, operated by Minh Fast Co., Ltd., provides custom rubber and silicone manufacturing services using compression molding, liquid silicone rubber (LSR) injection molding and CNC machining technologies.

The product range includes different types of silicone and rubber plugs, such as silicone and rubber plugs, Silicone Tapered Plug and Step Plug.

For applications requiring silicone pull plugs, pull plugs, cord stoppers or silicone cord stoppers with specific dimensions, customers can provide a sample, drawing or technical requirements for evaluation.

To request a quotation or technical consultation, please provide the hole diameter, material thickness, required plug dimensions, quantity and operating conditions. See the custom silicone manufacturing process for more information.

Frequently Asked Questions

What are silicone pull plugs?
Silicone pull plugs are flexible silicone rubber plugs with a main body and an extended pull stem. The stem is inserted through a hole and pulled to position the plug body inside the opening.

What are pull plugs used for?
Pull plugs are commonly used to cover, protect or temporarily seal through-holes. They can be useful when the opening is small, deep or difficult to access from one side.

What is a silicone cord stopper?
A silicone cord stopper is a flexible stopper made from silicone rubber that can be used to hold, limit or position a cord or flexible element. Its exact design depends on the application.

Are pull plugs and cord stoppers the same?
Not necessarily. Pull plugs are primarily designed for covering or sealing openings, while cord stoppers are generally designed to hold, stop or position cords. Some products may have overlapping designs depending on the application.

How do I select the correct pull plug size?
Measure the hole diameter and material thickness, then compare these dimensions with the plug body diameter, pull stem diameter and overall length. Sample testing is recommended before ordering large quantities.

Can silicone pull plugs be custom manufactured?
Yes. Custom silicone components can be developed according to a sample, drawing or specified dimensions. Contact the manufacturer to discuss material, tooling, dimensions, quantity and application requirements.

Conclusion

Silicone pull plugs provide a practical solution for covering, protecting and temporarily sealing through-holes. Their pull-stem design makes installation and removal convenient, especially in applications where access is limited.

For applications involving cords, silicone cord stoppers may be a more suitable solution when the main requirement is to hold or position a cord rather than seal a hole.

Choosing the correct dimensions, silicone material, elasticity and design is important for reliable performance. For custom pull plugs, silicone pull plugs, cord stoppers or silicone cord stoppers, contact Giacongsilicone.com (Hotline/Zalo: 0889 914 599) for technical consultation and custom manufacturing support.
