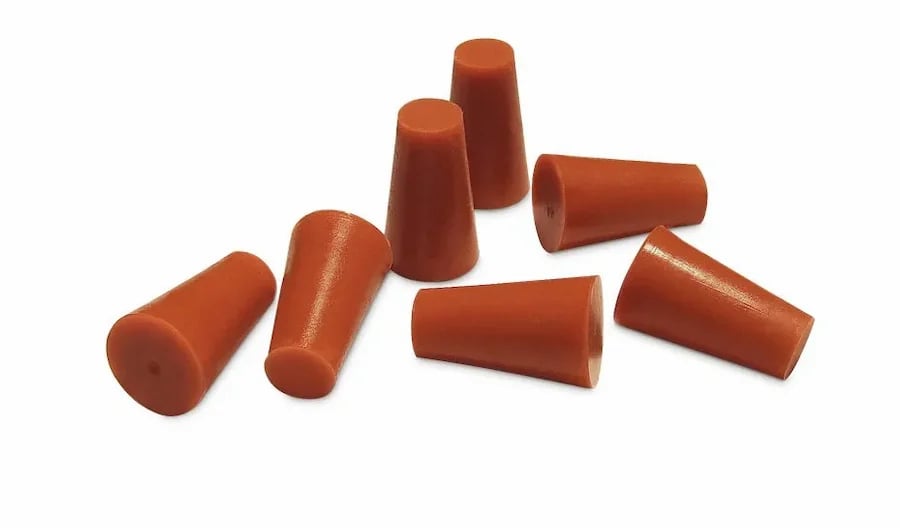

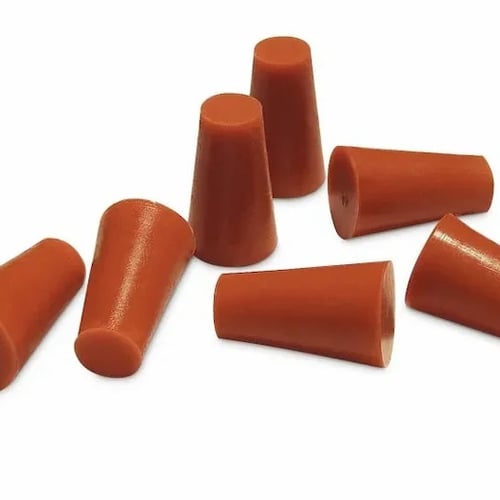

Tapered Silicone Plugs - Tapered rubber plugs - Tapered plug

In powder coating, electroplating, machining, and electronic assembly processes, waterproof rubber plugs are essential masking components. They are used to protect blind holes, with or without threads, from dust, moisture, water, and chemicals during surface treatment processes. With high elasticity and the ability to be reused multiple times, these plugs can help reduce material costs compared with disposable masking solutions. This article provides an overview of tapered plugs, including their design, materials, specifications, applications, and selection criteria, helping you choose the appropriate size and material for your specific application.

What Are Tapered Silicone Plugs?

A tapered plug, also known as a cone plug, is a tapered sealing component made from flexible rubber or silicone. It is designed to temporarily seal blind holes, with or without threads, in mechanical components. Because of its tapered shape, a single plug can fit a range of hole diameters rather than being limited to one fixed size. This design can reduce the number of different plug sizes that need to be stocked.

Tapered silicone plugs are particularly suitable for applications where flexibility and temperature resistance are required. Depending on the working environment, tapered plugs may also be manufactured from other elastomers, such as NBR or EPDM.

Why Are They Called Waterproof Rubber Plugs?

When the correct size range is selected, the tapered body of the plug creates continuous elastic pressure against the inner wall of the hole. This helps form a tight seal that limits the entry of water, moisture, dust, and chemicals into threaded or non-threaded holes. The plugs can therefore be used during processes such as dip coating, powder coating, electroplating, and pressure washing after machining.

This sealing capability is why tapered rubber plugs are commonly used as protective components in surface treatment and industrial manufacturing applications where temporary hole protection is required.

Key Design Features of Tapered Silicone Plugs

Tapered plugs are designed specifically for sealing blind drilled holes, including both threaded and non-threaded holes. Their tapered geometry allows one plug size to accommodate a defined range of hole diameters.

Technical Specifications of Tapered Silicone Plugs

Features:

• Each product code is designed for a defined range of hole diameters. Due to the tapered design, one plug size can fit multiple hole diameters within its specified range.

• The design allows the plugs to be installed and removed multiple times for reuse.

• Additional sizes can be manufactured according to specific customer requirements beyond the standard models listed in the table.

Geometric dimensions shown in the diagram:

• D = Large-end diameter

• d = Small-end diameter

• L = Length (plug height)

Materials and colors: Three material/color options are shown in the illustration: black rubber, red rubber (heat-resistant red silicone), and clear/white silicone.

Technical Specification Table

Note: The table contains 46 size options, ranging from the smallest size (D = 1.98 mm) to the largest size (D = 127 mm), covering a wide range of industrial hole-masking requirements for painting and plating applications. The quantity per pack generally decreases as plug size increases, from 1,000 pieces per pack for smaller sizes to 5 pieces per pack for the largest size.

Material Comparison: Silicone, NBR, and EPDM

For applications where water resistance and repeated use are important, material selection plays a key role in determining sealing performance and service life.

The actual number of reuse cycles depends on installation frequency, operating temperature, chemical exposure, and storage conditions. The figures above are general references based on common material characteristics and should not be considered an absolute performance guarantee for every application.

When water and dust protection are the primary requirements, silicone and EPDM are commonly considered suitable options because of their stable elasticity in humid environments. NBR may be more suitable when the plug is exposed to oils, grease, or fuels.

How to Select High-Quality Waterproof Rubber Plugs

1. Select the Appropriate Size Range

Because the tapered design allows one plug to fit multiple hole diameters within a defined range, select a model whose D–d dimensions cover the actual hole diameter. Avoid selecting a plug that is too large, which may make installation difficult or damage the sealing edge, or one that is too small, which may not generate sufficient compression for a tight seal.

2. Sealing Performance

Sealing performance depends on the elastic compression generated by the tapered body against the hole wall. The hole surface should be free from burrs and sharp edges that could damage the rubber. The appropriate plug length (L) should also be selected to provide sufficient contact with the hole.

3. Reusability

A high-quality rubber plug should maintain its original shape and elasticity after repeated installation and removal. The material should resist hardening, cracking, and loss of flexibility, particularly when exposed to repeated high-temperature cycles.

4. Elasticity for Water and Dust Protection

For outdoor or humid environments, silicone or EPDM may be selected when stable elasticity over a wide temperature range is required. Materials that become excessively hard or brittle at low temperatures may compromise the seal and reduce protection against water and dust.

Manufacturing Standards for Custom Rubber and Silicone Plugs

1. Molding Technology

Tapered silicone and rubber plugs are commonly manufactured using compression molding or liquid silicone rubber (LSR) injection molding, depending on production volume and dimensional accuracy requirements. For a wide range of sizes such as those listed above, individual molds may be required for different product models to maintain the specified tapered profile.

2. Dimensional Tolerance Control for D, d, and L

The three primary dimensions—D (large-end diameter), d (small-end diameter), and L (plug length)—should be inspected using calipers or appropriate measuring equipment after molding. Dimensional control helps ensure that the plug fits within its specified hole diameter range and maintains consistent sealing performance.

3. Elasticity and Water Resistance Testing

For applications requiring a high level of water resistance, customers may request practical sealing tests before placing large-volume orders. Depending on the application, testing may include water immersion or pressure spraying to evaluate sealing performance under representative operating conditions.

Reference Pricing for Rubber Plugs by Size and Quantity

The cost of custom rubber plugs depends on the dimensions (D–d range), material (silicone/NBR/EPDM), required hardness, order quantity, and whether an existing mold can be used or a new mold is required. The reference categories below can be used for preliminary cost planning:

The actual unit price depends on whether an existing mold can be used or a new mold must be manufactured, as well as on the selected material and order quantity. Please contact Minh Fast for an accurate quotation based on your technical drawing or product sample.

Important Considerations When Ordering Custom Waterproof Rubber Plugs

1. Product Dimensions and Design

Before placing a custom manufacturing order, provide the exact diameter of the hole to be sealed, a technical drawing, or a physical sample. Based on this information, the manufacturer can determine whether an existing mold is suitable or whether a new mold should be designed for a specialized size.

2. Order Quantity

The minimum order quantity depends largely on whether the product can be manufactured using an existing mold or requires a custom mold. Standard sizes generally offer more flexible order quantities. When a new mold is required, the expected annual or project volume should be considered to optimize tooling and production costs.

3. Hardness and Color Requirements

The product hardness can be adjusted according to the Shore A scale to meet specific requirements for elasticity, compression, and sealing performance. Colors can also be customized to facilitate product identification, size classification, or production-line management.

4. Production Lead Time

Products manufactured using standard molds generally have shorter production and delivery times. Custom-sized plugs require additional time for mold design, manufacturing, testing, and approval. Therefore, the production schedule should be confirmed with the manufacturer during the quotation and ordering stage.

Frequently Asked Questions About Tapered Rubber Plugs

1. What are waterproof rubber plugs used for?

They are used to temporarily seal blind holes, with or without threads, during painting, plating, surface treatment, or outdoor applications where protection against water, dust, and chemical ingress is required.

2. Can one tapered plug fit multiple hole sizes?

Yes. Because of the tapered geometry from the large diameter (D) to the small diameter (d), each model is designed to accommodate a defined range of hole diameters rather than only one fixed size.

3. Can tapered rubber plugs be reused?

Yes. Reusability is one of the key design characteristics of this product category. Silicone or EPDM plugs with suitable material properties can be installed and removed multiple times while maintaining their elasticity and sealing performance, provided they are used and stored under appropriate conditions.

4. Should I choose silicone, NBR, or EPDM for waterproof applications?

For water resistance and outdoor weather exposure, silicone or EPDM may be suitable choices. For environments involving oils, grease, or fuels, NBR is generally more appropriate because of its oil resistance.

5. Can rubber plugs be manufactured to custom dimensions?

Yes. Minh Fast can manufacture rubber and silicone plugs based on customer drawings or physical samples, with options for customized dimensions, hardness, and color beyond the standard size range.

6. What is the minimum order quantity?

The minimum order quantity depends on the product model and whether an existing mold or a new custom mold is required. Please contact Minh Fast for the appropriate MOQ for your required size and specification.

MINH FAST – Custom Silicone and Rubber Plug Manufacturing

Minh Fast specializes in manufacturing custom rubber and silicone products for industrial applications. Our product range includes tapered plugs and waterproof rubber plugs for powder coating, electroplating, machining, electrical and electronic manufacturing, and outdoor equipment.

With a range of molding capabilities and technical experience in rubber and silicone manufacturing, Minh Fast can produce tapered plugs in different diameters, lengths, hardness levels, and material specifications. Products can be manufactured according to technical drawings, specified dimensions, or physical samples provided by customers.

Minh Fast supports both standard and custom production requirements for industrial customers. Manufacturing processes are controlled according to the required specifications, with attention to material selection, dimensional consistency, tooling, and production efficiency.

For assistance in selecting the appropriate material, dimensions, hardness, and quantity, or to request a quotation for custom tapered silicone plugs and rubber plugs, please contact Minh Fast for technical consultation and pricing.
