Top 5 O Ring Manufacturers UK: Trusted Supplier OEM/ODM

An O-ring is one of the simplest mechanical components in modern engineering — and also one of the most critical. Despite its humble doughnut shape, this small elastomeric seal keeps fluids, gases, and contaminants exactly where they need to be across nearly every industry, from aerospace to food processing.

This guide breaks down what an O-ring actually is, where it's used, how silicone O-rings are manufactured, what to check before placing an OEM/ODM order, and how to evaluate o ring suppliers uk before committing to a production run.

What Is an O-Ring?

An O-ring is a torus-shaped (ring-shaped) gasket made from an elastomer — most commonly rubber compounds such as nitrile (NBR), silicone (VMQ), fluorosilicone (FVMQ), EPDM, or fluoroelastomer (FKM/Viton). It is designed to sit in a groove and be compressed between two or more mating surfaces during assembly, creating a seal that blocks the passage of liquids or gases at the interface.

The sealing mechanism is mechanically simple but precise: when compressed, the O-ring's cross-section deforms slightly, filling microscopic irregularities in the mating surfaces. As internal pressure rises, the ring is pushed further into the groove, increasing the sealing force — a self-energizing effect that makes O-rings reliable across a wide pressure range without additional hardware.

Applications of O-Rings Across Industries

Because O-rings are inexpensive, easy to install, and effective across a broad range of temperatures and pressures, they appear in an extraordinarily wide range of products and systems:

• Automotive – fuel injectors, engine seals, hydraulic brake systems, transmission components

• Aerospace and defense – hydraulic actuators, fuel systems, cabin pressurization seals, components requiring AS568 or NORSOK-certified materials

• Medical and pharmaceutical – syringes, infusion pumps, dialysis equipment, bioprocessing systems requiring USP Class VI or FDA-compliant silicone

• Food and beverage processing – pumps, valves, and piping that require FDA, EU 1935/2004, or 3-A Sanitary compliant seals

• Oil and gas – downhole tools, valves, and connectors exposed to sour gas (H2S), high pressure, and rapid gas decompression (RGD)

• Electronics and consumer goods – waterproof housings, connectors, wearable devices

• Industrial machinery and hydraulics – pumps, cylinders, compressors, and pneumatic systems

The variety of these use cases explains why no single elastomer or specification fits every application — material selection is application-driven, not generic.

Key Specifications in Silicone O-Ring Manufacturing

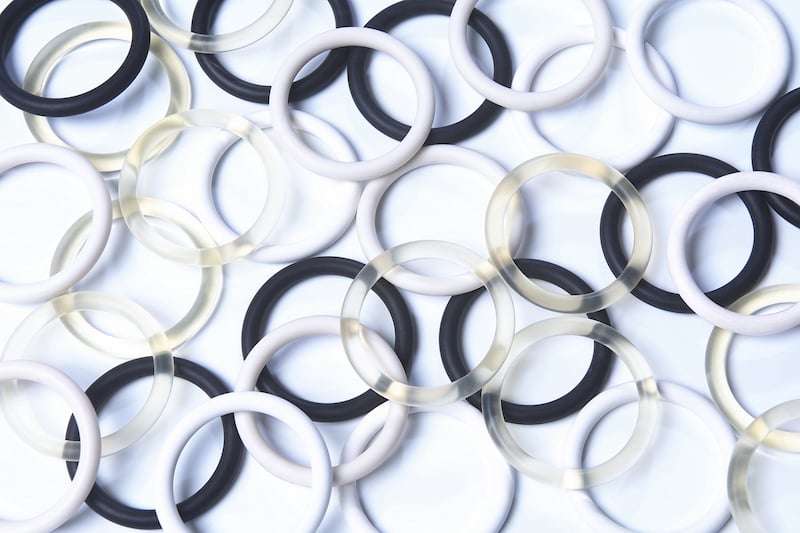

Silicone O-rings (VMQ) are prized for their wide operating temperature range, flexibility, and biocompatibility, making them especially common in medical, food-grade, and high/low-temperature applications. When sourcing silicone O-rings, the following technical parameters typically need to be defined:

1. Material grade and compound

Standard silicone, high-temperature silicone, liquid silicone rubber (LSR), or food/medical-grade silicone (often USP Class VI or FDA 21 CFR 177.2600 compliant).

2. Dimensional standards

O-rings are sized according to recognized international standards, including:

• AS568 (American imperial standard)

• ISO 3601 / BS1806 (European/British imperial-metric)

• DIN 3771 (German metric)

• JIS B 2401 (Japanese metric)

• BS4518 (British metric)

3. Cross-section diameter and inner diameter (ID)

Even small tolerance deviations can compromise sealing performance, so dimensional accuracy is non-negotiable for critical applications.

4. Shore hardness

Typically ranges from 40 to 90 Shore A; softer compounds offer better sealing at low pressure, while harder compounds resist extrusion at high pressure.

5. Temperature resistance

Standard silicone O-rings generally perform well from approximately -60°C to 200°C+, though this varies by exact compound and curing process.

6. Manufacturing process

Common production methods include compression molding, injection molding, and liquid silicone rubber (LSR) injection molding — each suited to different volumes, tolerances, and part geometries.

7. Certifications and compliance

Depending on end-use, relevant approvals may include FDA, USP Class VI, WRAS, NSF, REACH, RoHS, or industry-specific standards like NORSOK or NACE for oil and gas.

Top 5 Well-Known O-Ring Manufacturers in the UK

Below is an overview of several established o ring suppliers uk sourcing teams frequently reference, based on publicly available company information. As always, verify current certifications, pricing, and lead times directly with each company before ordering.

1. M Barnwell Services Ltd

M Barnwell Services describes itself as the largest independent manufacturer, stockist, and distributor of O-rings and back-up rings in the UK, holding around 50 million units in stock and supplying over 5,000 customers globally every month. The company offers an extensive range of seal materials including FFKM, NBR, HNBR, Viton (FKM/FPM), EPDM, silicone (VMQ), PTFE, and medical-grade compounds, measured to both imperial (BS1806, ISO 3601) and metric (BS4518) standards. Operating since 1972, the company also supports approvals such as WRAS, FDA, NSF, and NORSOK depending on the product line.

• Website: barnwell.co.uk

• Phone: +44 (0)121 429 8011

• Email: sales@barnwell.co.uk

2. Precision Polymer Engineering Ltd (PPE)

Precision Polymer Engineering is a prominent supplier of high-performance O-rings, offering both standard and custom sizes made from various materials for diverse applications across multiple industries, with manufacturing facilities in both the UK and the US. PPE is known particularly for high-performance elastomer compounds used in demanding sealing environments.

• Website: prepol.com

3. Supaseal (UK) Ltd

Supaseal carries an extensive range of over 30 million O-rings across four units in Market Harborough, covering common materials as well as PTFE-encapsulated silicone and Viton, plus specialist perfluoroelastomers including Kalrez, Chemraz, Isolast, and Perlast. The company can also produce fully moulded non-standard O-rings up to 700mm ID without tooling costs, as well as scarf-jointed and vulcanised rings for static, non-standard applications.

• Website: supaseal.co.uk

4. GKA Rubber & Plastics Ltd

GKA Rubber & Plastics is positioned as a trusted UK manufacturer of high-quality rubber O-rings, offering both standard and custom-designed sealing solutions across a range of specifications. The company states it follows stringent quality control measures at every production stage, from raw material inspection through to final product evaluation, to ensure dimensional accuracy and consistent performance.

• Website: gkarubberandplastics.co.uk

5. ERIKS UK

ERIKS is recognized as one of the world's largest O-ring suppliers, operating multiple Core Competence Centers, dealers, and service centers across the UK. As part of a larger international group, ERIKS offers broad material and technical support resources for both standard and engineered sealing solutions.

• Website: o-ring.info / eriks.co.uk

(Sources referenced: barnwell.co.uk, supaseal.co.uk, gkarubberandplastics.co.uk, o-ring.info, and ensun.io's 2025 directory of UK O-ring suppliers. Company details and certifications should be reconfirmed directly with each supplier, as offerings and accreditations can change.)

How to Choose a Reliable O-Ring Manufacturer

With dozens of o ring manufacturers uk and worldwide to choose from, narrowing the list comes down to a few practical checkpoints:

1. Material range and technical depth — A manufacturer that stocks dozens of elastomer compounds (NBR, FKM, EPDM, VMQ, FFKM, PTFE) signals real technical capability rather than a narrow product line.

2. Compliance with international standards — Look for explicit references to ISO 3601, AS568, DIN 3771, or industry-specific certifications relevant to your sector.

3. In-house engineering support — The ability to assist with material selection, custom tooling, and technical drawings reduces risk on custom projects.

4. Quality system accreditation — ISO 9001 or equivalent quality management certification is a baseline indicator of process control.

5. Track record and reviews — Years in operation, customer testimonials, and case studies in your specific industry are strong signals of reliability.

6. Sample and prototyping capability — A manufacturer willing to provide samples before committing to full production demonstrates confidence in their own process.

7. Transparent communication on lead time and MOQ — Especially important for OEM/ODM orders with non-standard dimensions.

What to Check Before Placing an OEM/ODM O-Ring Order

Ordering custom O-rings — whether OEM (built to your design) or ODM (developed and manufactured to your specification by the supplier) — requires more diligence than buying off-the-shelf stock. Before placing an order, it's worth confirming:

• Exact dimensional drawings — ID, OD, cross-section, and tolerance class, ideally in CAD or technical drawing format

• Material compound and hardness, matched to the operating environment (chemical exposure, temperature range, pressure)

• Required certifications relevant to your industry (FDA, medical, automotive, etc.)

• Minimum order quantity (MOQ) and whether tooling costs apply for non-standard sizes

• Color and surface finish requirements, if relevant for identification or branding

• Lead time and sampling process — reputable manufacturers should be willing to provide samples or prototypes before full production

• Batch traceability and quality documentation, especially for regulated industries

• Packaging and labeling requirements for international shipment

Skipping any of these steps is one of the most common reasons OEM/ODM seal orders run into delays, rejected batches, or performance failures after installation.

Industry-Specific O-Ring Standards to Know

Different sectors apply different baseline standards, and a manufacturer's ability to meet them is often the real differentiator between suppliers:

Industry	Common Standards/Approvals
Automotive & Industrial	ISO 3601, DIN 3771, AS568
Medical & Pharmaceutical	USP Class VI, FDA 21 CFR, ISO 10993
Food & Beverage	FDA, EU 1935/2004, 3-A Sanitary, NSF
Oil & Gas	NORSOK M710, NACE TM0297, ISO 23936-2
Water & Plumbing	WRAS, KTW, DVGW
Aerospace	AS568, NSF, customer-specific MIL specs

A manufacturer's willingness to discuss exactly which of these standards their compounds and processes meet — rather than offering vague assurances — is usually a reliable signal of genuine technical capability.

OEM/ODM Silicone O-Ring Manufacturing at Minh Fast

For businesses looking to source custom silicone O-rings outside the UK market, Minh Fast offers OEM/ODM silicone O-ring manufacturing tailored to client specifications. With extensive experience in medical-grade silicone manufacturing, precision molding, and custom rubber component development, Minh Fast supports customers worldwide across:

• Medical devices

• Food and beverage equipment

• Consumer products

• Industrial machinery

• Electronics

• Automotive applications

Minh Fast offers:

• Custom silicone formulations

• FDA-compliant silicone materials

• Custom hardness from 30–90 Shore A

• Custom colors and branding

• Mold design and development

• Prototype to mass production services

• Strict quality control processes

By combining competitive manufacturing costs with international quality standards, Minh Fast helps global customers develop reliable custom silicone sealing solutions tailored to their specific applications.

For custom silicone O-ring OEM/ODM projects, visit Vietnamsiliconerubber.com to discuss your technical requirements with our engineering team.

This approach allows international buyers — including those already working with o ring manufacturers uk for some product lines — to diversify their supply chain, access competitive silicone compound pricing, and maintain consistent quality control through documented production processes. Whether the requirement is a small prototype batch or a recurring high-volume order, defining clear technical drawings, material certifications, and quality benchmarks upfront remains the single most important factor in a successful custom O-ring partnership.
