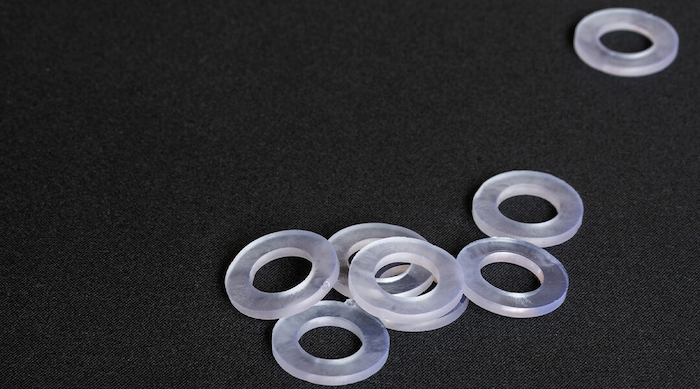

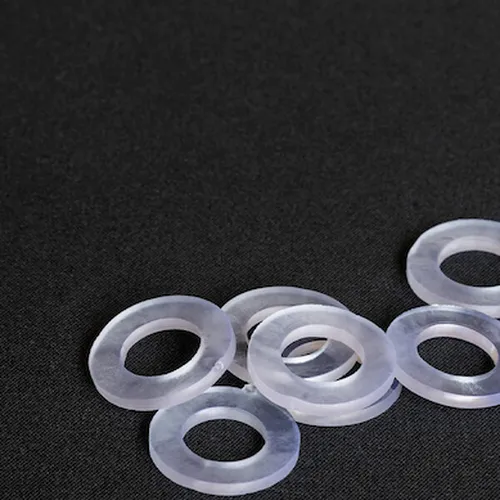

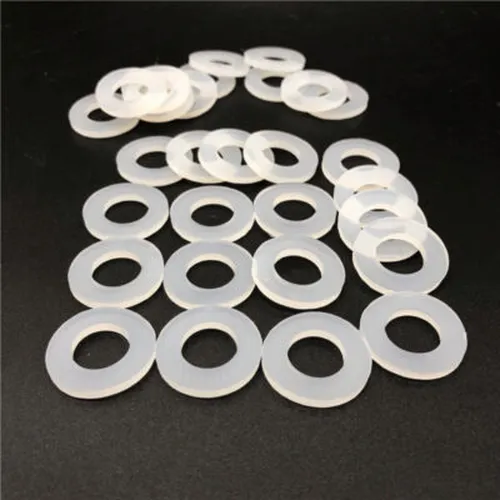

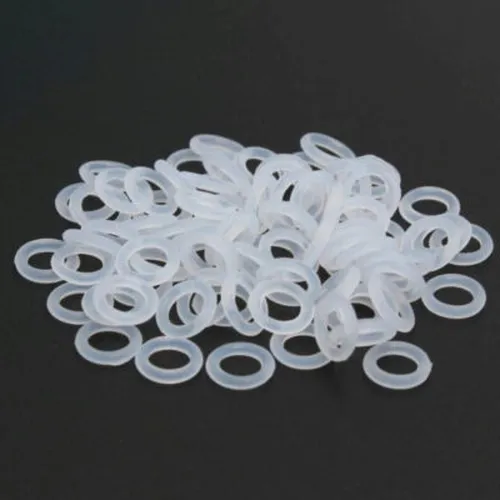

Waterproof rubber gaskets are indispensable solutions for systems requiring absolute sealing, effectively preventing water leaks. Made from high-quality rubber, these gaskets are notable for their superior durability, flexible elasticity, and heat resistance, making them ideal for both industrial and household applications. In this article, we’ll share everything you need to know about waterproof rubber gaskets to help you choose the right product.
Waterproof Rubber Gaskets: Key Information
O-Ring Rubber Gaskets are a popular sealing solution due to their cost-effectiveness, flexibility, and suitability for both static and dynamic applications. Important points to know about standard O-ring sizes:
-
Size calculation formula: OD = ID + 2 × CS (Outer Diameter = Inner Diameter + 2 × Cross-Section Diameter).
-
International standards: O-ring size and quality vary by country and region.
-
Tolerance limits: Exceeding tolerance can lead to leaks.
-
Elastic material: O-rings are made from materials that return to their original shape after deformation.
Understanding these features helps in selecting and using O-rings effectively.
See also: What is a round rubber gasket? Custom heat-resistant rubber gasket manufacturing
Standard O-Ring Sizes
| No | Outer Diameter (mm) | Inner Diameter (mm) | Thickness (mm) |
|---|---|---|---|
| 1 | 8 | 4 | 2 |
| 2 | 11 | 7 | 2 |
| 3 | 7.6 | 4.0 | 1.8 |
| 4 | 10.0 | 7.0 | 1.5 |
| 5 | 11.0 | 7.0 | 2.0 |
| 6 | 17.0 | 12.0 | 2.5 |
| 7 | 24.0 | 20.0 | 2.0 |
| 8 | 30.0 | 20.0 | 3.0 |
| 9 | 28.1 | 24.5 | 1.8 |
| 10 | 30.0 | 26.0 | 2.0 |
| 11 | 43.0 | 35.2 | 4.2 |
| 12 | 47.0 | 37.0 | 5.0 |
| 13 | 60.0 | 53.0 | 3.5 |
| 14 | 91.0 | 85.0 | 3.0 |
| 15 | 92.0 | 85.0 | 3.5 |
| 16 | 143.0 | 133.0 | 5.0 |
| 17 | 150.0 | 141.0 | 4.5 |
| 18 | 134.0 | 120.0 | 7.0 |
| 19 | 9.0 | 4.5 | 2.5 |
| 20 | 11.0 | 6.5 | 2.5 |
| 21 | 20.7 | 13.0 | 3.0 |
| 22 | 64.0 | 60.0 | 2.1 |
| 23 | 12.8 | 8.0 | 2.4 |
| 24 | 13.2 | 8.0 | 2.6 |
| 25 | 22.8 | 19.2 | 1.8 |
| 26 | 21.0 | 17.4 | 1.8 |
| 27 | 22.0 | 16.8 | 2.6 |
| 28 | 9.0 | 5.8 | 1.6 |
Notes:
-
Selecting the correct gasket size optimizes sealing performance and extends equipment life.
-
Specialized applications (medical, food, heavy industry) require certified materials such as FDA or ISO.
-
Custom sizes and materials are available upon request.
See also: What is a silicone O-ring? Custom silicone O-ring manufacturing at Minh Fast
Custom Waterproof Rubber Gasket Production at Minh Fast
Why Choose Minh Fast:
-
International-Standard Materials:
Minh Fast uses FDA-approved silicone from trusted suppliers like Momentive and Wacker. Products are safe, non-toxic, and suitable for high-standard applications, including electronics. -
ISO-Certified Factory:
Our ISO quality management ensures a closed production process, from raw material inspection to packaging, guaranteeing consistent accuracy and quality. -
Advanced Technology:
State-of-the-art machinery, including LSR silicone injection presses, ensures smooth surfaces and meets strict technical requirements. -
Strict Quality Control:
Each production step is carefully monitored to eliminate defective products, providing only top-standard gaskets. -
Trusted by Major Corporations:
Minh Fast partners with global companies like Icare (Australia, New Zealand), EPSI (USA, Germany), and Myung Sung (South Korea), confirming our quality and reputation internationally.
Minh Fast delivers high-quality rubber gaskets and acts as a reliable strategic partner, ready to meet both domestic and international customer demands.
